12-Point Cap Screws

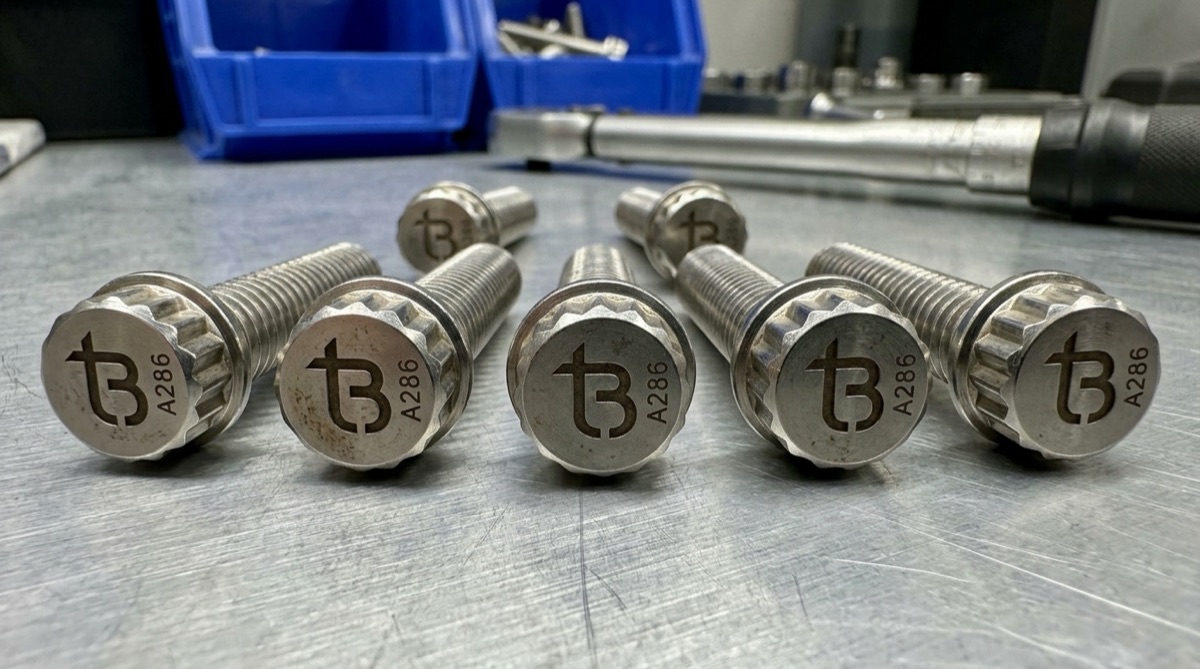

TorqBolt manufactures 12-point cap screws in A286 and other compatible alloys to AS9100D and ISO 9001:2015 quality systems. Each fastener head carries the struck tB manufacturer ligature plus the A286 (or specified) alloy grade marking for traceability. NAS6303-NAS6320 tension cap-screw family. Aerospace structural and engine applications. Grade markings: A286 (160 ksi) for aerospace, 8740 (220 ksi) for race engines.
Materials
Alloy choice is set by the spec, the service temperature, the corrosion environment, and the strength target. TorqBolt routinely produces 12-point cap screws in A286 (UNS S66286), Inconel 718, Ti-6Al-4V (Grade 5), MP35N (UNS R30035), Custom 465 stainless, AISI 8740 chromoly heat-treated, AISI 4340, 17-4 PH H1025 condition, H-11 tool steel, and L19 race-grade alloy steel.
Frequently asked questions
What is a 12-point bolt?
A 12-point bolt has 12 splines arranged every 30 degrees on the OUTSIDE of the bolt head, also called a bi-hex or double-hex bolt. The 12 external splines provide twice the wrench-engagement angles of a standard hex head, allowing higher applied torque before cam-off, which is why aerospace and motorsport applications adopt the geometry.
Are 12-point bolts the same as ISO 14579?
No. ISO 14579 specifies an INTERNAL hexalobular socket head (similar to Torx) recessed inside a cap screw. External 12-point bolts under MS21250 / NAS1351 / AS3216 use an EXTERNAL bi-hex head driven by a 12-point socket wrench. Both involve 12 features but on different sides of the bolt head and require different drivers.
Which alloys does TorqBolt manufacture 12-point bolts in?
TorqBolt produces 12-point bolts in A286 (UNS S66286), Inconel 718 (UNS N07718), Ti-6Al-4V Grade 5, MP35N (UNS R30035), Custom 465 H1025, AISI 8740 chromoly heat-treated, AISI 4340, 17-4 PH, H-11 tool steel, and L19 race-grade alloy steel. Choice depends on tensile target, service temperature, and corrosion environment.
Is TorqBolt AS9100D certified?
Yes. TorqBolt operates under AS9100D Rev D and ISO 9001:2015 quality management systems, audited annually by the registrar. NORSOK M-630 and NACE MR0175 / ISO 15156 qualifications cover offshore and sour-service applications. Mill test reports MTC 3.1 standard and MTC 3.2 critical-service witness are issued with every lot.
What lead time should I expect?
Stock alloys (A286, AISI 8740, AISI 4340, 17-4 PH, 316 stainless) ship in 4 to 6 weeks. Specialty alloys (Inconel 718, MP35N, Custom 465, Ti-6Al-4V, L19) ship in 8 to 12 weeks depending on raw-bar lead time at the alloy producer. Critical-service orders requiring third-party witness inspection (MTC 3.2) add 1 to 2 weeks for witness scheduling.
UNJ-3A External Thread Dimensions (Common 12-Point Bolt Sizes)
Per SAE AS8879 (controlled-root-radius UNJ external thread). 12-point aerospace bolts under MS21250, NAS1351, AS3216, NAS6303 to NAS6320 are produced to UNJ-3A external thread tolerances. Root radius 0.150 P to 0.180 P (where P = pitch) for fatigue resistance, this is the difference vs standard UN-3A and the reason aerospace specifies UNJ.
| Nominal | TPI | Pitch P (mm) | Major Dia Min (mm) | Major Dia Max (mm) | Pitch Dia Min (mm) | Pitch Dia Max (mm) | Minor Dia Min (mm) | Minor Dia Max (mm) |
|---|---|---|---|---|---|---|---|---|
| 1/4-28 UNJF-3A | 28 | 0.907 | 6.297 | 6.350 | 5.706 | 5.770 | 5.156 | 5.296 |
| 5/16-24 UNJF-3A | 24 | 1.058 | 7.875 | 7.938 | 7.185 | 7.249 | 6.553 | 6.711 |
| 3/8-24 UNJF-3A | 24 | 1.058 | 9.462 | 9.525 | 8.773 | 8.840 | 8.139 | 8.298 |
| 7/16-20 UNJF-3A | 20 | 1.270 | 11.051 | 11.113 | 10.227 | 10.297 | 9.467 | 9.652 |
| 1/2-20 UNJF-3A | 20 | 1.270 | 12.638 | 12.700 | 11.815 | 11.887 | 11.051 | 11.243 |
| 9/16-18 UNJF-3A | 18 | 1.411 | 14.225 | 14.288 | 13.310 | 13.385 | 12.466 | 12.673 |
| 5/8-18 UNJF-3A | 18 | 1.411 | 15.812 | 15.875 | 14.897 | 14.973 | 14.054 | 14.262 |
| 3/4-16 UNJF-3A | 16 | 1.588 | 18.991 | 19.050 | 17.961 | 18.040 | 17.018 | 17.246 |
| 7/8-14 UNJF-3A | 14 | 1.814 | 22.166 | 22.225 | 21.001 | 21.085 | 19.926 | 20.181 |
| 1-12 UNJF-3A | 12 | 2.117 | 25.336 | 25.400 | 23.974 | 24.064 | 22.717 | 22.985 |
| 1 1/4-12 UNJF-3A | 12 | 2.117 | 31.687 | 31.750 | 30.328 | 30.418 | 29.072 | 29.343 |
| 1 1/2-12 UNJF-3A | 12 | 2.117 | 38.037 | 38.100 | 36.678 | 36.768 | 35.422 | 35.693 |
| 1 15/16-12 UNJF-3A | 12 | 2.117 | 49.149 | 49.213 | 47.791 | 47.886 | 46.535 | 46.812 |
| 2-12 UNJF-3A | 12 | 2.117 | 50.737 | 50.800 | 49.378 | 49.473 | 48.122 | 48.399 |
Internal thread (UNJ-3B, mating nut) tolerances and metric M-J equivalents available on request. Send drawing or spec callout to info@torqbolt.com.
