Ford Barra Head Studs (Australian XR6 Turbo, FG, FG-X)

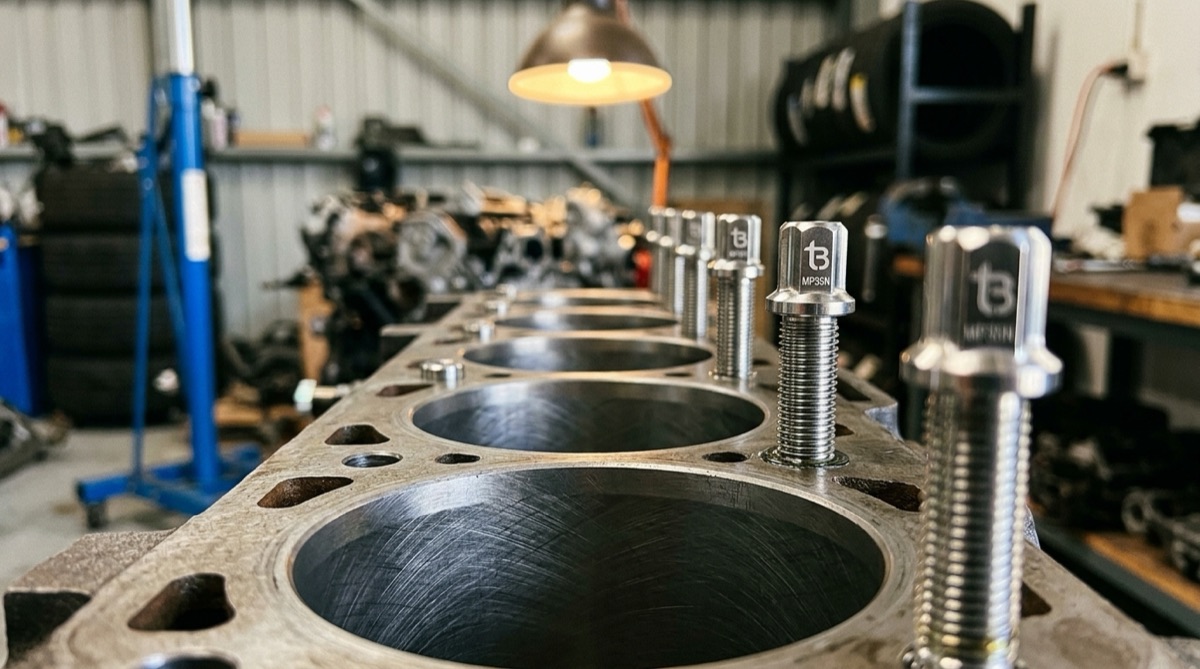

TorqBolt Barra head studs (TB-BARRA-MP35N) ship as 14 M12 x 1.5 studs in MP35N (260 ksi) or Custom 465 H1025 (220 ksi). The Barra is the Australian equivalent of the 2JZ in tuner culture, and the bolt-on stud upgrade is one of the first modifications on any high-boost Barra build alongside the famous Plazmaman intake and Garrett G-series turbo.

Barra head stud installation

1. Remove factory bolts in reverse pattern.
2. Chase all 14 M12 x 1.5 holes in the iron block deck.
3. Install studs hand-tight, back off 1/2 turn.
4. Set head with new Cometic or HKS MLS head gasket.
5. Lubricate threads + under-nut face with moly lube.
6. Tighten in 3 stages, criss-cross from center outward: stage 1 at 30 N-m, stage 2 at 60 N-m, stage 3 at 100 N-m final.
7. For 1000+ hp builds (modified turbo, race fuel): torque-angle stage 4, turn each nut 90 degrees from stage 2.
8. Re-torque after first heat cycle.

Barra family fitment

All Barra turbo variants (240T BA / BF, 270T FG, F6 270T, 310T FG-X, Sprint 325T) share the head-bolt pattern, and the TB-BARRA-MP35N kit fits all. The naturally-aspirated Barra 195 / 220 (XR6 NA) shares the same pattern but typically does not need stud upgrade since boost is not in play.

Installation best practice

Achieving the design preload is as much about the install method as the bolt: lubricant matters (published torque values assume 0.13 to 0.16 friction coefficient; anti-seize or moly-disulfide reduces friction 20 to 30 percent and over-stretches the bolt at the published torque). Direct bolt-stretch measurement with an ultrasonic gauge or stretch gauge over the bolt centerline cuts preload variation to under 5 percent vs torque-only at 25 percent. Race builders measure stretch.

Re-torque after first heat cycle (run engine to operating temperature, allow to cool overnight, re-check torque) recovers preload lost to embedment at the faying surfaces. Conventional alloy-steel and MP35N bolts benefit from re-torque; torque-to-yield (TTY) bolts are NOT re-torqued and are typically replaced rather than reused after disassembly.

Alloy choice vs build budget

For street + occasional drag (target 500 to 700 hp): heat-treated AISI 8740 chromoly at 200 ksi is sufficient. For sustained 700 to 1000 hp street/strip: Custom 465 H1025 at 220 ksi or L19 race-grade at 270 ksi. For 1000+ hp drag racing or roll-racing: MP35N at 260 ksi. The bottom-end limits (rod tensile, main-cap stretch, deck flatness) become the bottleneck above this level, not the bolt.
