MS21250 12-point aerospace bolts
MS21250 is the US Military Standard for 160 ksi tensile 12-point external-wrenching aerospace bolts. It has been widely used since the 1970s in military and civil airframe structural fastening, engine attachment, and high-strength airframe fittings because the 12-point head allows higher applied torque without camming the wrench off the joint, and the standard 160 ksi tensile rating sits at the design point most aerospace structural drawings call out. MS21250 is typically produced in A286 (UNS S66286) and AISI 8740 chromoly heat-treated, with NAS1351 covering the close-tolerance shank version of the same bolt.

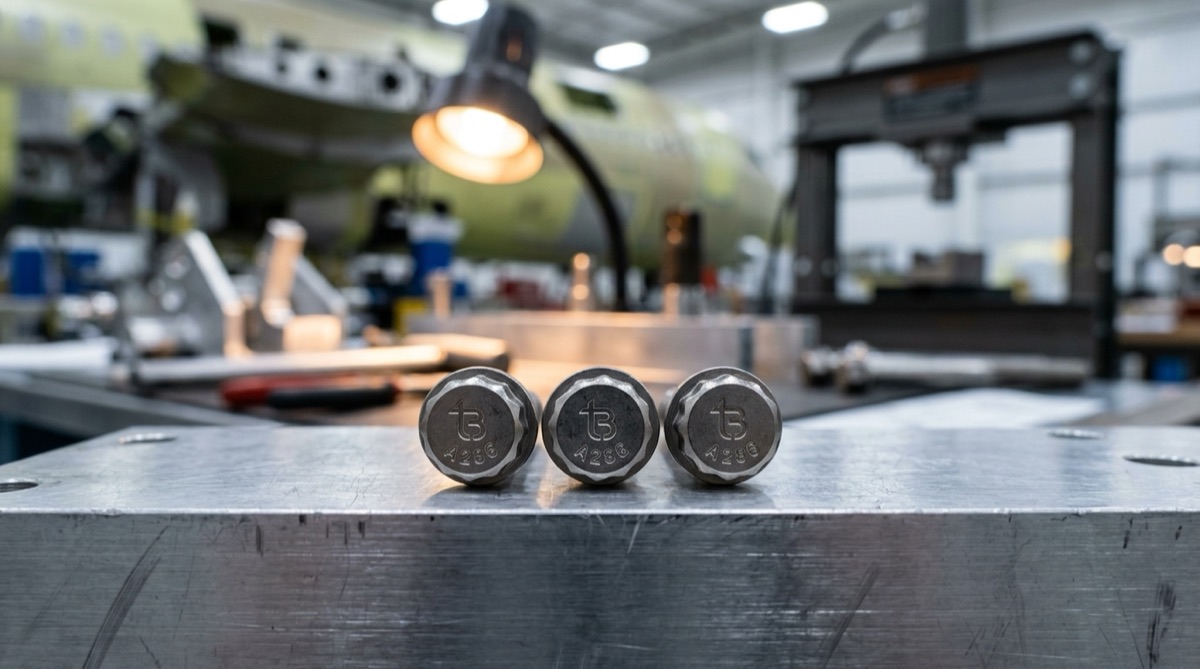

TorqBolt manufactures MS21250 bolts in A286, AISI 8740 chromoly heat-treated, Inconel 718, Ti-6Al-4V and 17-4 PH H1025 to AS9100D Rev D and ISO 9001:2015 quality systems, with NORSOK M-630 and NACE MR0175 / ISO 15156 qualifications for sour-service offshore applications. Each bolt head carries the struck tB manufacturer ligature plus the alloy grade marking, and every lot ships with a mill test report (MTC 3.1 standard, MTC 3.2 critical with third-party witness inspection of chemistry, hardness, tensile, and dimensional records).
Common Alloys for MS21250
| Alloy | Tensile | Service envelope |
|---|---|---|
| A286 (UNS S66286) | 160 ksi | up to 700 °C |
| Inconel 718 (UNS N07718) | 180 ksi | up to 700 °C, jet-engine |
| AISI 8740 chromoly | up to 220 ksi (HT) | standard high-strength |
| Ti-6Al-4V (Grade 5) | 130 ksi | 56% lighter than steel |
UNJ-3A External Thread Dimensions (Common 12-Point Bolt Sizes)
Per SAE AS8879 (controlled-root-radius UNJ external thread). 12-point aerospace bolts under MS21250, NAS1351, AS3216, NAS6303 to NAS6320 are produced to UNJ-3A external thread tolerances. Root radius 0.150 P to 0.180 P (where P = pitch) for fatigue resistance, this is the difference vs standard UN-3A and the reason aerospace specifies UNJ.
| Nominal | TPI | Pitch P (mm) | Major Dia Min (mm) | Major Dia Max (mm) | Pitch Dia Min (mm) | Pitch Dia Max (mm) | Minor Dia Min (mm) | Minor Dia Max (mm) |
|---|---|---|---|---|---|---|---|---|
| 1/4-28 UNJF-3A | 28 | 0.907 | 6.297 | 6.350 | 5.706 | 5.770 | 5.156 | 5.296 |
| 5/16-24 UNJF-3A | 24 | 1.058 | 7.875 | 7.938 | 7.185 | 7.249 | 6.553 | 6.711 |
| 3/8-24 UNJF-3A | 24 | 1.058 | 9.462 | 9.525 | 8.773 | 8.840 | 8.139 | 8.298 |
| 7/16-20 UNJF-3A | 20 | 1.270 | 11.051 | 11.113 | 10.227 | 10.297 | 9.467 | 9.652 |
| 1/2-20 UNJF-3A | 20 | 1.270 | 12.638 | 12.700 | 11.815 | 11.887 | 11.051 | 11.243 |
| 9/16-18 UNJF-3A | 18 | 1.411 | 14.225 | 14.288 | 13.310 | 13.385 | 12.466 | 12.673 |
| 5/8-18 UNJF-3A | 18 | 1.411 | 15.812 | 15.875 | 14.897 | 14.973 | 14.054 | 14.262 |
| 3/4-16 UNJF-3A | 16 | 1.588 | 18.991 | 19.050 | 17.961 | 18.040 | 17.018 | 17.246 |
| 7/8-14 UNJF-3A | 14 | 1.814 | 22.166 | 22.225 | 21.001 | 21.085 | 19.926 | 20.181 |
| 1-12 UNJF-3A | 12 | 2.117 | 25.336 | 25.400 | 23.974 | 24.064 | 22.717 | 22.985 |
| 1 1/4-12 UNJF-3A | 12 | 2.117 | 31.687 | 31.750 | 30.328 | 30.418 | 29.072 | 29.343 |
| 1 1/2-12 UNJF-3A | 12 | 2.117 | 38.037 | 38.100 | 36.678 | 36.768 | 35.422 | 35.693 |
| 1 15/16-12 UNJF-3A | 12 | 2.117 | 49.149 | 49.213 | 47.791 | 47.886 | 46.535 | 46.812 |
| 2-12 UNJF-3A | 12 | 2.117 | 50.737 | 50.800 | 49.378 | 49.473 | 48.122 | 48.399 |
Internal thread (UNJ-3B, mating nut) tolerances and metric M-J equivalents available on request. Send drawing or spec callout to info@torqbolt.com.
Request a Quote
Send drawing or PO line referencing MS21250 to info@torqbolt.com or call +91-22-66157017.
