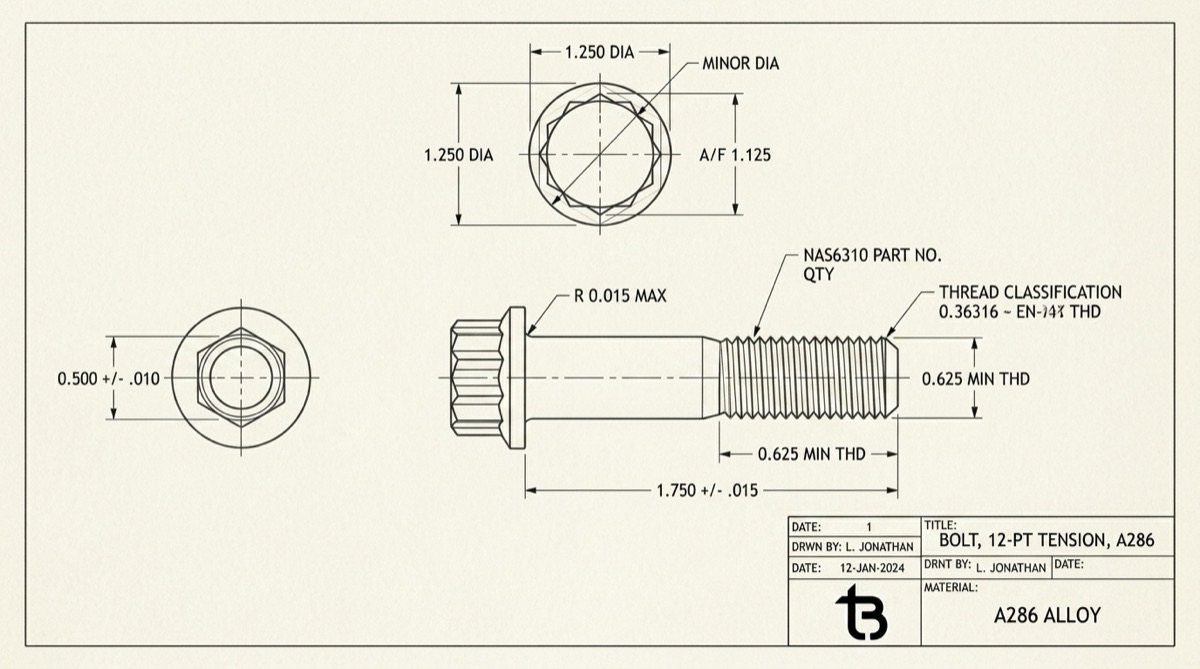

NAS6310 tension 12-point bolts
NAS6310 is the 5/8" body diameter member of the NAS6300-series 12-point external-drive aerospace tension cap-screw family (the -10 dash number indicates 10/16" = 5/8" body). It is widely used in heavy primary airframe structural fastening, main wing-spar attachment fittings, heavy engine mount hardware and primary rotorcraft transmission mounts because the 5/8" shank delivers the joint clamp force needed for primary structure carrying full flight loads. NAS6310 is typically produced to 160 ksi tensile in A286 (UNS S66286), and sits in the heavy-section bracket of the NAS6300 family.
TorqBolt manufactures NAS6310 cap-screws in A286, AISI 8740 chromoly heat-treated, Inconel 718, MP35N and Custom 465 to AS9100D Rev D and ISO 9001:2015 quality systems. Each cap-screw head carries the struck tB manufacturer ligature plus the alloy grade marking, and every lot ships with a mill test report (MTC 3.1 standard, MTC 3.2 critical with third-party witness inspection of chemistry, hardness, tensile, and dimensional records).
Common Alloys for NAS6310
| Alloy | Tensile | Service envelope |
|---|---|---|
| A286 (UNS S66286) | 160 ksi | up to 700 °C |
| Inconel 718 (UNS N07718) | 180 ksi | up to 700 °C, jet-engine |
| AISI 8740 chromoly | up to 220 ksi (HT) | standard high-strength |
| Ti-6Al-4V (Grade 5) | 130 ksi | 56% lighter than steel |
UNJ-3A External Thread Dimensions (Common 12-Point Bolt Sizes)
Per SAE AS8879 (controlled-root-radius UNJ external thread). 12-point aerospace bolts under MS21250, NAS1351, AS3216, NAS6303 to NAS6320 are produced to UNJ-3A external thread tolerances. Root radius 0.150 P to 0.180 P (where P = pitch) for fatigue resistance, this is the difference vs standard UN-3A and the reason aerospace specifies UNJ.
| Nominal | TPI | Pitch P (mm) | Major Dia Min (mm) | Major Dia Max (mm) | Pitch Dia Min (mm) | Pitch Dia Max (mm) | Minor Dia Min (mm) | Minor Dia Max (mm) |
|---|---|---|---|---|---|---|---|---|
| 1/4-28 UNJF-3A | 28 | 0.907 | 6.297 | 6.350 | 5.706 | 5.770 | 5.156 | 5.296 |
| 5/16-24 UNJF-3A | 24 | 1.058 | 7.875 | 7.938 | 7.185 | 7.249 | 6.553 | 6.711 |
| 3/8-24 UNJF-3A | 24 | 1.058 | 9.462 | 9.525 | 8.773 | 8.840 | 8.139 | 8.298 |
| 7/16-20 UNJF-3A | 20 | 1.270 | 11.051 | 11.113 | 10.227 | 10.297 | 9.467 | 9.652 |
| 1/2-20 UNJF-3A | 20 | 1.270 | 12.638 | 12.700 | 11.815 | 11.887 | 11.051 | 11.243 |
| 9/16-18 UNJF-3A | 18 | 1.411 | 14.225 | 14.288 | 13.310 | 13.385 | 12.466 | 12.673 |
| 5/8-18 UNJF-3A | 18 | 1.411 | 15.812 | 15.875 | 14.897 | 14.973 | 14.054 | 14.262 |
| 3/4-16 UNJF-3A | 16 | 1.588 | 18.991 | 19.050 | 17.961 | 18.040 | 17.018 | 17.246 |
| 7/8-14 UNJF-3A | 14 | 1.814 | 22.166 | 22.225 | 21.001 | 21.085 | 19.926 | 20.181 |
| 1-12 UNJF-3A | 12 | 2.117 | 25.336 | 25.400 | 23.974 | 24.064 | 22.717 | 22.985 |
| 1 1/4-12 UNJF-3A | 12 | 2.117 | 31.687 | 31.750 | 30.328 | 30.418 | 29.072 | 29.343 |
| 1 1/2-12 UNJF-3A | 12 | 2.117 | 38.037 | 38.100 | 36.678 | 36.768 | 35.422 | 35.693 |
| 1 15/16-12 UNJF-3A | 12 | 2.117 | 49.149 | 49.213 | 47.791 | 47.886 | 46.535 | 46.812 |
| 2-12 UNJF-3A | 12 | 2.117 | 50.737 | 50.800 | 49.378 | 49.473 | 48.122 | 48.399 |
Internal thread (UNJ-3B, mating nut) tolerances and metric M-J equivalents available on request. Send drawing or spec callout to info@torqbolt.com.
